ASi-5/ASi-3 CIP Safety over EtherNet/IP + ModbusTCP + OPC UA Gateway with integrated Safety Monitor

ASi-5/ASi-3 CIP Safety over EtherNet/IP + ModbusTCP + OPC UA Gateway with integrated Safety Monitor

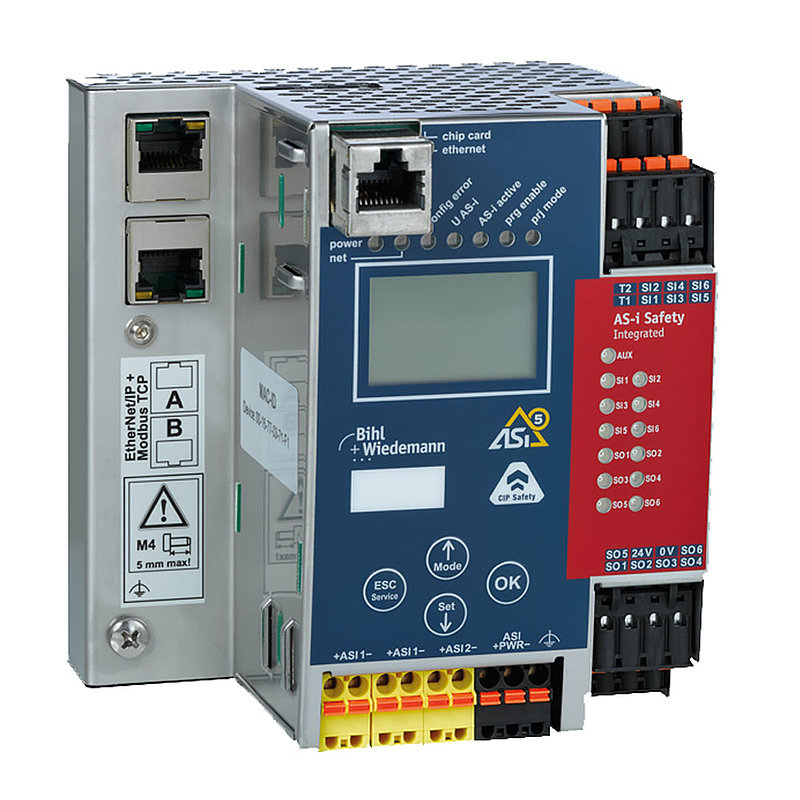

Bihl+Wiedemann | BWU3857

ASi-5/ASi-3 CIP Safety over EtherNet/IP + ModbusTCP Gateway with integrated Safety Monitor, 2 ASi-5/ASi-3 masters

  • ASi-5 compatible
  • 1 power supply for 2 AS-i networks
  • 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4)
  • expandable to max. 62 x 2 channels safe inputs
  • 1922 x 2 channels safe inputs in max. configuration
  • 6 release circuits (6 x fast electronic safe outputs),
  • expandable to max. 32 safe outputs
  • 992 safe outputs in max. configuration
  • Safe Link, diagnostic and configuration via Ethernet/IP + Modbus TCP or Ethernet diagnostic interface
  • duplicate address recognition
  • AS-i fault detector
  • programming in C optional
  • IP20

Introduction

Most of the Industry 4.0 applications rely on the sensor and actuator data out of the machine.

With the new Bihl+Wiedemann BWU3857 Gateway with ASi-5 and an integrated OPC UA server, you are able to get this data directly out of the machine – without any preprocessing.

Get the information wherever needed – at your HMI panel or your cloud services.

Product details

Markets:
  • Machine Manufacturing
  • Packaging
Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.03
    • Embedded UA Server Profile

Security Policies:

  • UACore 1.03
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – Basic256Sha256

User Tokens:

  • UACore 1.03
    • User Token – User Name Password Server Facet
