Secure Integration Server

Secure Integration Server

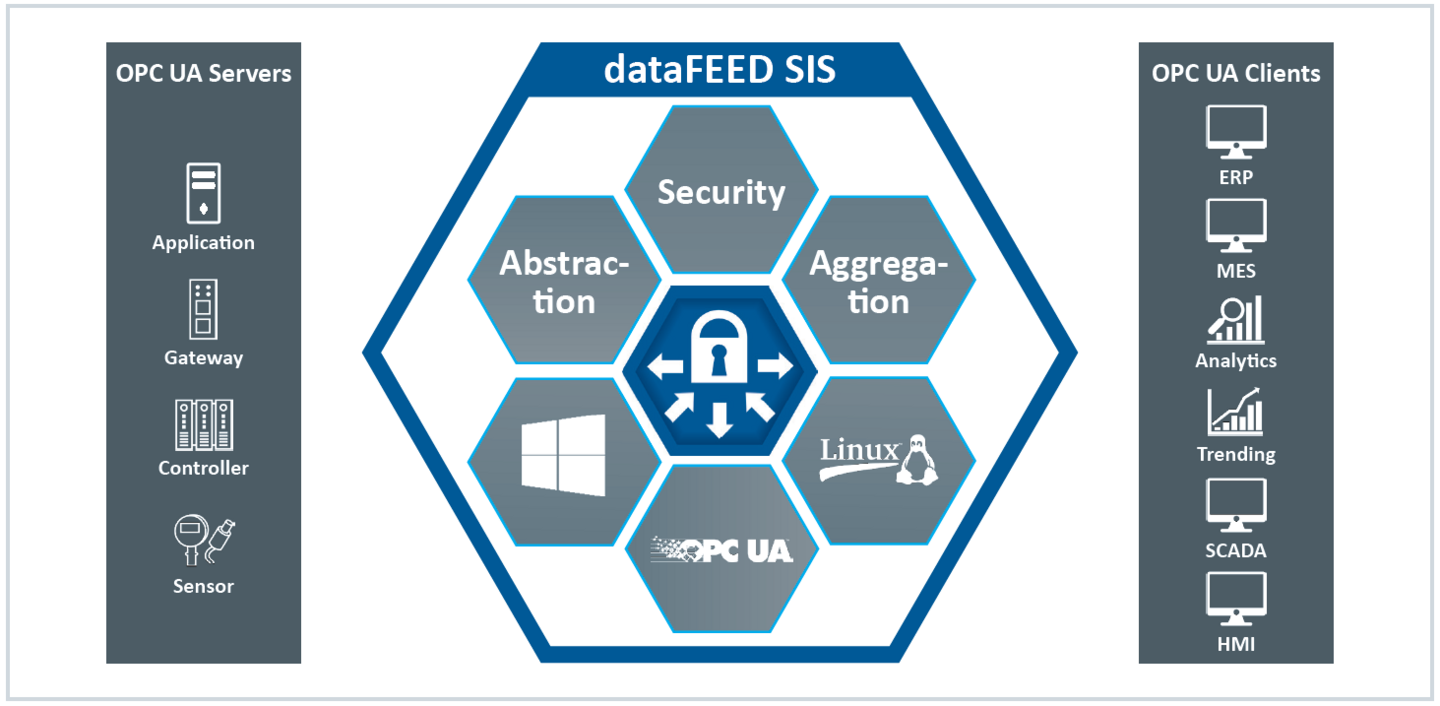

Secure Integration Server (SIS) provides a powerful OPC UA data integration layer. Based on the OPC UA aggregation server users implement flexible solutions combining the various OPC UA Servers at automation level with their associated address spaces and making the data available to IT applications via a consistent OPC UA interface. Secure Integration Server covers the full range of OPC UA security features and enables the implementation of state-of-the-art security solutions.

The interface abstraction of Secure Integration Server enables continuous adaptation and scaling of OPC UA-based IoT solutions throughout their entire lifecycle. Users gain a high degree of flexibility and at the same time significantly reduce integration and configuration costs.

Secure OPC UA Communication

  • Support of all safety functions of OPC UA standard
  • Provide different data for different users and applications
  • Support for multiple OPC UA Endpoints (client or server), each with its own certificates
  • Filtered access, depending on IP address (White List / Black List for OPC UA Endpoints)
  • Detection of DoS (Denial of Service) attacks on OPC UA authentication

Data Aggregation

  • Aggregation of data from multiple sources in a server (aggregation of OPC UA Namespace)
  • Application access to aggregation servers, not too many individual data sources
  • Extensive and flexible OPC UA Service-based address space filtering, down to OPC UA Item level
  • Reduced configuration effort (Configuration not required individually for each OPC UA data source and each OPC UA Client)

Interface Abstraction

  • Common, stable OT interface for different IT applications
  • Adaptations in automation network transparent for IT applications
  • Support for standardized address spaces (companion specifications)
  • Flexible variables mapping of integrated OPC UA servers to different loaded address spaces (Address Space Mapping)
  • Decoupling of investment decisions in IT and OT environment

MQTT Gateway for the Integration of OPC UA Applications into Modern Industry 4.0 or IoT Cloud Solutions

  • Individual use of all security mechanisms of the MQTT standard, e.g. SSL encryption including certificates
  • Protection against data loss through the Store&Forward function: data buffering when the connection is lost and automatic transmission after the connection reactivation
  • Extensive and flexible trigger options through “LUA Script Engine” support
  • Freely definable and customizable JSON data format

Product details

Category: Aggregating Server

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard 2017 UA Server Profile

Additional Facets:

  • UACore 1.04
    • Core 2017 Server Facet
    • Data Access Server Facet
    • HTTPS UA-Binary
    • Method Server Facet
    • UA-TCP UA-SC UA-Binary

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – Anonymous Server Facet
    • User Token – User Name Password Server Facet
    • User Token – X509 Certificate Server Facet

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard UA Client 2017 Profile

Additional Facets:

  • UACore 1.04
    • Base Client Behaviour Facet
    • Core 2017 Client Facet
    • DataAccess Client Facet
    • DataChange Subscriber Client Facet
    • HTTPS UA-Binary
    • UA-TCP UA-SC UA-Binary

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Client Facet
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet
