uaToolkit Embedded

Member: Softing Industrial Automation GmbH

Product website: industrial.softing.com/en/products/software/opc-de...

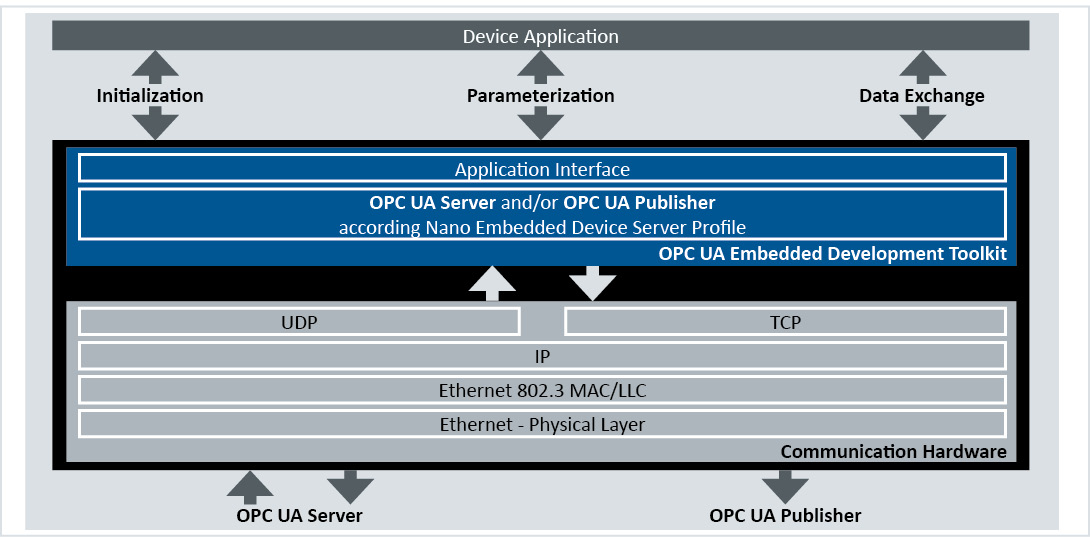

Embedded OPC UA servers with OPC UA publisher/ subscriber communication

• Support of OPC UA client/server and/or OPC UA publisher/subscriber communication
• Conformance with Nano Embedded Device Server Profile, Micro Embedded Device Server Profile und Embedded UA Server Profile of OPC Foundation
• Sending multicast and broadcast messages, addressing needs of Industrie 4.0 and Industrial Internet of Things (IIoT) applications
• Optional support of client/server communication security


Investment security through comprehensive package

• Risk-free implementation of OPC UA server and publisher thanks to toolkit software and 3 years´ right to updates to future versions
• Included template application of OPC UA server and publisher
• Modular design to scale OPC UA functionality according to actual requirements


Multiple platform support and resources efficiency

• Portable ANSI C source code compatible for every operating system supporting BSD sockets and inter-process synchronization
• Platform layers for FreeRTOS, Linux and Windows
• 260 KB toolkit code (including static data) / 40 KB runtime data when implementing OPC UA server and publisher
• 180 KB toolkit code (including static data) / 10 KB runtime data when implementing OPC UA publisher only

Advantages:

• Embedded OPC UA Servers with OPC UA Publisher/Subscriber Communication
• Multiple Platform Support and Resources Efficiency
• Investment Security through Comprehensive Package

As toolkits cannot be certified directly, the certification process has been made using an application (uaToolkit Embedded Test Server) that comes with the uaToolkit Embedded and has been created using the toolkit.

Further information to the product

• 1806CE00A9
• 1806CE00AA
• 1806CE00AB

Certified Profile:

Embedded UA Server Profile

Security Policies:

SecurityPolicy - Basic128Rsa15
SecurityPolicy - Basic256
SecurityPolicy - Basic256Sha256

User Identity Tokens:

User Token - User Name Password

Certificate Number:

1806CE00A9

Certification Date:

06/25/2018

Expiration:

06/30/2021

CTT Version:

1.03.340.380

Product Name:

Softing uaToolkit Embedded (Embedded UA Server)

Product Version:

1.10.5.18359

Certified Profile:

Micro Embedded Device Server

User Identity Tokens:

User Token - User Name Password

Certificate Number:

1806CE00AA

Certification Date:

06/25/2018

Expiration:

06/30/2021

CTT Version:

1.03.340.380

Product Name:

Softing uaToolkit Embedded (Micro Embedded Device Server)

Product Version:

1.10.5.18359

Certified Profile:

Nano Embedded Device Server

User Identity Tokens:

User Token - User Name Password

Certificate Number:

1806CE00AB

Certification Date:

06/25/2018

Expiration:

06/30/2021

CTT Version:

1.03.340.380

Product Name:

Softing uaToolkit Embedded (Nano Embedded Device Server)

Product Version:

1.10.5.18359
