OPC UA IoT Broker
Integration Objects integrationobjects.com

OPC UA IoT Broker

Are you looking for easy made data acquisition solution for your cloud-based applications?

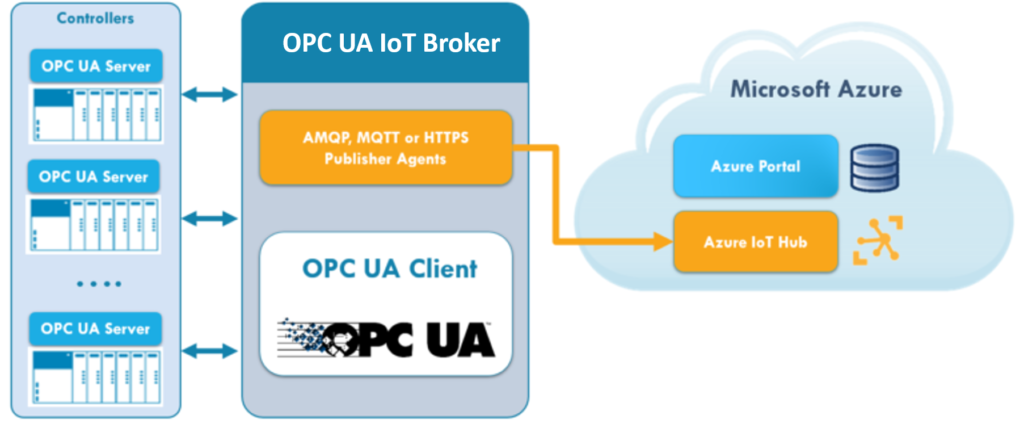

OPC UA IoT Broker is a plug and play software product designed for Industrial Internet of Things requirements. It provides a simple and secure mechanism to collect real-time data, alarms, and conditions from multiple OPC UA Servers connected to your PLCs and control systems.

Then, it sends the gathered data to Microsoft Azure via its IoT hub. Indeed, the OPC UA IoT Broker supports MQTT, AMQP and HTTP transport protocols to establish communication with the cloud.

Moreover, it provides an intuitive user interface to easily configure the OPC UA and Azure IoT Hub connections.

Product details

Markets:
  • Aerospace & Defense
  • Automotive
  • Chemicals
  • Energy and Power
  • Food & Beverages
  • Machine Manufacturing
  • Medical Devices
  • Metals & Mining
  • Oil & Gas
  • Packaging
  • Pharmaceuticals
  • Pulp & Paper
  • Semiconductor & Electronics
  • Water & Waste Management
 Category: Gateway

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Standard UA Client 2017 Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet
    • User Token – X509 Certificate Client Facet

Capacities
Max. SecureChannels: 250
Max. Sessions: 250
Max. Subscriptions: 250
Max. Monitored Items Per Subscription: 1000
Monitored Item Queue: 100
Publish Request Queue: 20
Fastest Publishing: 100
Number Of Continuation Points: 100
