  • Siemens AG - SIMATIC RF600 – RFID System
  • Publish date: 03/16/2016
  • Product release date: 04/01/2022
  • Product Version: V4.0

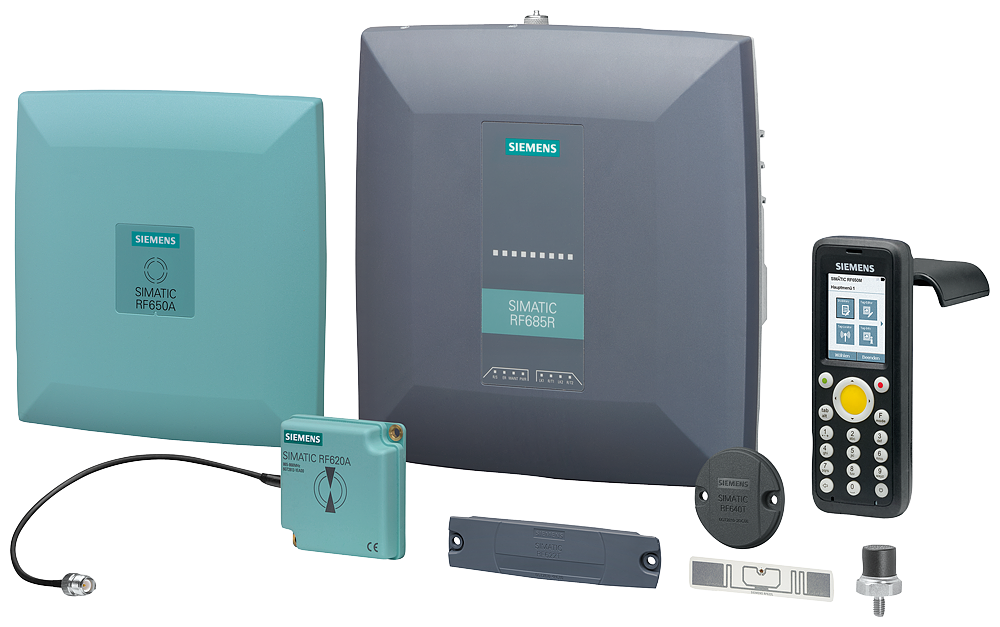

SIMATIC RF600 – RFID System

SIMATIC RF600 – RFID System

RF600は、標準エアプロトコルISO 18000-63/EPCグローバルC1 Gen2 V2およびISO 18000-62をサポートするUHF周波数範囲のRFIDシステムです。



生産管理、資産管理、追跡&追跡、サプライチェーン管理などの産業用アプリケーションの要件を満たすように設計されています。



信頼性の高い識別、包括的な診断および試運転能力、自動化およびITシステムへの簡単な統合は、RF600システムの不可欠な機能であり、実装と運用の労力の削減、プラントの高い可用性、透明なプロセスを実現します。



これらのデバイスは、AutoID コンパニオン仕様の OPC 統合アーキテクチャ、リリース 1.01 をサポートしています。

Product details

Category: AutoID

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Embedded 2017 UA Server Profile

Additional Facets:

  • UACore 1.04
    • Data Access Server Facet
    • Method Server Facet
    • Standard Event Subscription Server Facet

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Server Facet
    • User Token – User Name Password Server Facet

Capacities

Max. SecureChannels: 10
Max. Sessions: 5
Max. Subscriptions: 25
Max. Monitored Items Per Subscription: 200
Monitored Item Queue: 1000
Fastest Sampling: 10
Fastest Publishing: 10
Number Of Continuation Points: 5

Information Models

  • AutoID 1.01
  • DI 1.03

Product certification history

Certified Profiles Embedded 2017 UA Server Profile
Certificate Number 2203CE00EB
Certification Date 03/26/2022
Expiration Date 03/31/2025
CTT Version 1.04.9.398
Additional Facets Method Server Facet,
Standard Event Subscription Server Facet,
Data Access Server Facet
Security Policies SecurityPolicy – None,
SecurityPolicy – Basic128Rsa15,
SecurityPolicy – Basic256,
SecurityPolicy [B] – Basic256Sha256,
SecurityPolicy [A] - Aes128-Sha256-RsaOaep,
SecurityPolicy - Aes256-Sha256-RsaPss
User Identity Tokens User Token – Anonymous Server Facet,
User Token – User Name Password Server Facet
Product Name SIMATIC RF680
Certified Product Version V4.0
Product MD5 Hash e6b8695c3c326ffe8ef5d7cc2203fa35
Embedded 2017 UA Server Profile
Certified Profiles UA Embedded Server
Certificate Number 1702CE0084
Certification Date 03/20/2017
Expiration Date 02/29/2020
CTT Version 1.2.336.273
Product Name SIMATIC RF600 Family
Certified Product Version 3.01
UA Embedded Server
