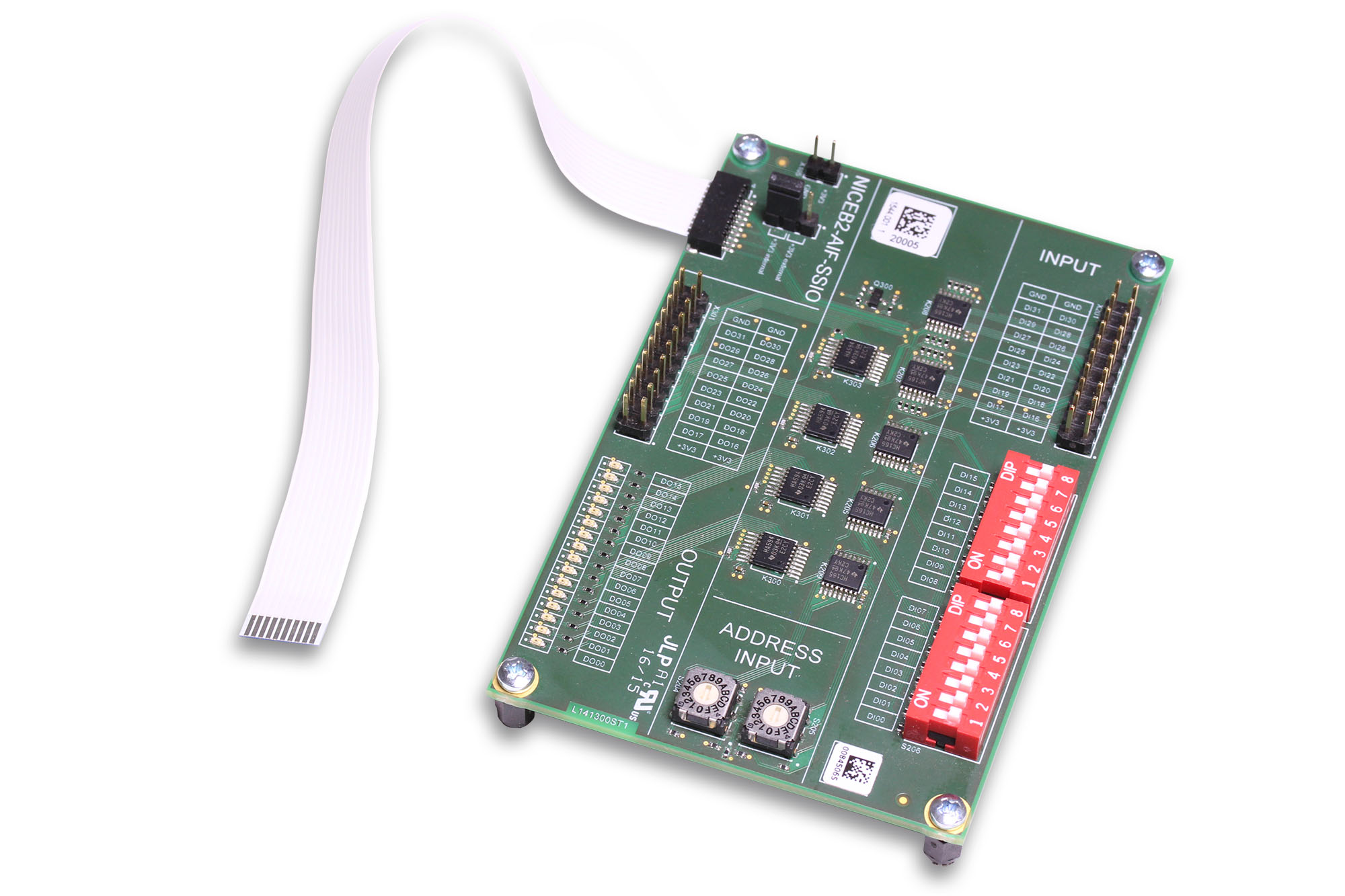

SSIO extension for netIC IOT Evaluation Board

SSIO extension for netIC IOT Evaluation Board

Extension board for evaluation of the SSIO interface of netIC IOT


  • Simulation of the SSIO interface of netIC IOT
  • Shift register for 4 byte input and 4 byte output
  • Signals are accessible via DIP switch, LED or strip connector

Compact field devices will increasingly be equipped with more intelligence and functionality. Especially for I4.0 and IoT a continuous, object-oriented data model from field device to management level shall be established. Besides transmission via Real-Time Ethernet the objects shall be transferred directly to the cloud via IoT communication. To meet these objectives Hilscher has enhanced its DIL-32 Communication IC netIC with central IoT functionality.

The new IoT-ready netIC is based on the multiprotocol chip netX 52 and offers device manufacturers maximum flexibility with an easy handling. With netIC IOT the user can transmit data via OPC UA or MQTT on the same physical cable parallel to the Real-Time Ethernet communication – reactionless and bypassing the PLC. All process and service data of the field device will be arranged in a generic, protocol-independent object model.

The OEM will be supported by an intelligent engineering tool, which guides him through the complete „build process“ of his device and he even can adapt the pinning of netIC IOT to his needs. In addition he can use netIC standard functionality like a SSIO interface for direct I/Os or a SPI interface to the host CPU.
