• Publish date: 03/02/2016
  • Product release date: 03/02/2016
  • Product Version: 2.01

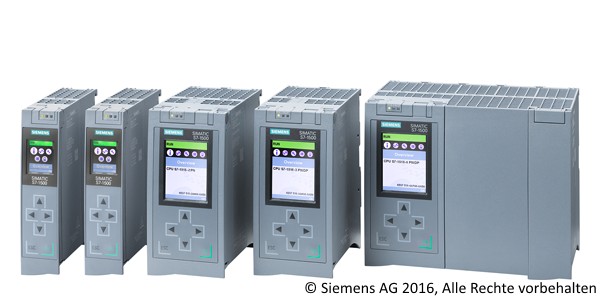

SIMATIC S7-1500 PLC Family

SIMATIC S7-1500 PLC Family

The ultimate plus in automation.

The SIMATIC S7-1500 controller series with the high-end CPU 1518 and the new controllers in compact design, CPU 1511C and CPU 1512C, is the new generation of controllers in the TIA Portal and a milestone for automation. It ensures highest efficiency and maximum usability for medium and  high-end applications in machine and system automation.

Find OPC UA directly integrated in the whole controller family:

  • S7-1500
  • S7-1500S
  • S7-1500T
  • ET200SP CPU
  • PLCSIM Advanced

Product details

Category: Controller Subcategory: PLC

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Embedded 2017 UA Server Profile

Additional Facets:

  • UACore 1.04
    • ComplexType 2017 Server Facet
    • Method Server Facet

Security Policies:

  • UACore 1.04
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Facet
    • User Token – Anonymous Server Facet
    • User Token – User Name Password Server Facet

Supported Profiles and Facets

Application Profiles:

  • UACore 1.04
    • Minimum UA Client Profile

Security Policies:

  • UACore 1.04
    • SecurityPolicy - Aes256-Sha256-RsaPss
    • SecurityPolicy [A] - Aes128-Sha256-RsaOaep
    • SecurityPolicy [B] – Basic256Sha256
    • SecurityPolicy – Basic128Rsa15
    • SecurityPolicy – Basic256
    • SecurityPolicy – None

User Tokens:

  • UACore 1.04
    • User Token – Anonymous Client Facet
    • User Token – Anonymous Facet
    • User Token – User Name Password Client Facet

Product certification history

Certified Profiles Embedded 2017 UA Server Profile, Minimum UA Client Profile
Certificate Number 2111CE00B3
Certification Date 11/12/2021
Expiration Date 11/30/2024
CTT Version 1.04.9.396
Additional Facets Method Server Facet,
ComplexType 2017 Server Facet
Security Policies SecurityPolicy – None,
SecurityPolicy – Basic128Rsa15,
SecurityPolicy – Basic256,
SecurityPolicy [B] – Basic256Sha256
User Identity Tokens User Token – Anonymous Facet,
User Token – Anonymous Client Facet,
User Token – User Name Password Server Facet,
User Token – User Name Password Client Facet
Product Name SIMATIC S7-1500
Certified Product Version 2.9.2
Product MD5 Hash 24207fb219947e2056f8d4f49ca892c6
Embedded 2017 UA Server Profile,
Minimum UA Client Profile
Certified Profiles UA Embedded Server
Certificate Number 1703CE0086
Certification Date 04/10/2017
Expiration Date 03/31/2020
CTT Version 1.2.336.273
Product Name SIMATIC S7-1500 CPUs
Certified Product Version 2.01
UA Embedded Server
